Aspen Avionics EVOLUTION 1000H PILOT PFD

Additional resources

Evolution for Helicopters.

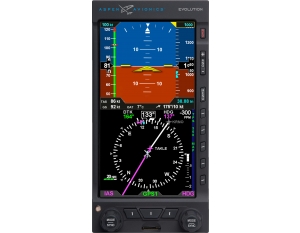

The Pilot H PFD is a lightweight, compact, and all solid-state digital replacement for legacy mechanical flight instruments and, like the rest of the Evolution Flight Display product line, is built upon robust Attitude and Heading Reference Sensor (AHRS) technology.

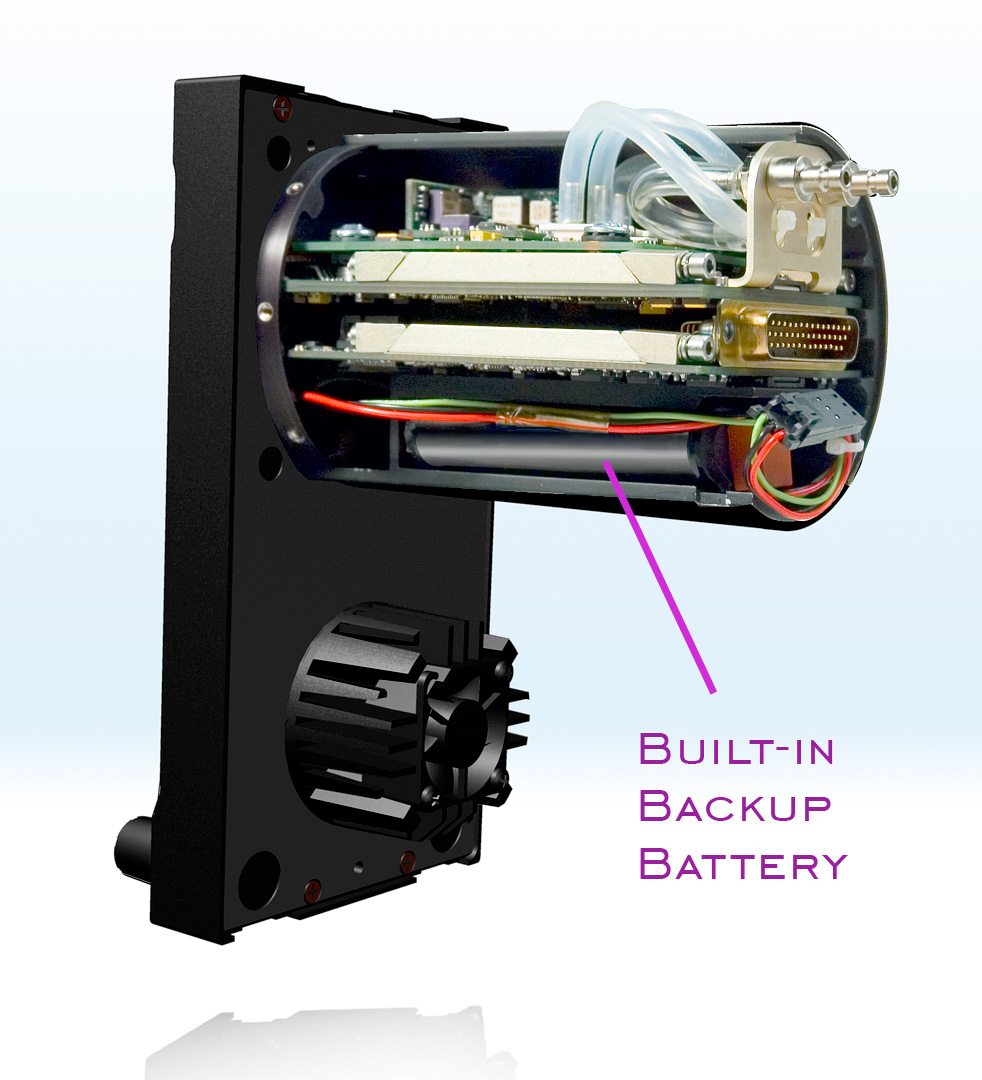

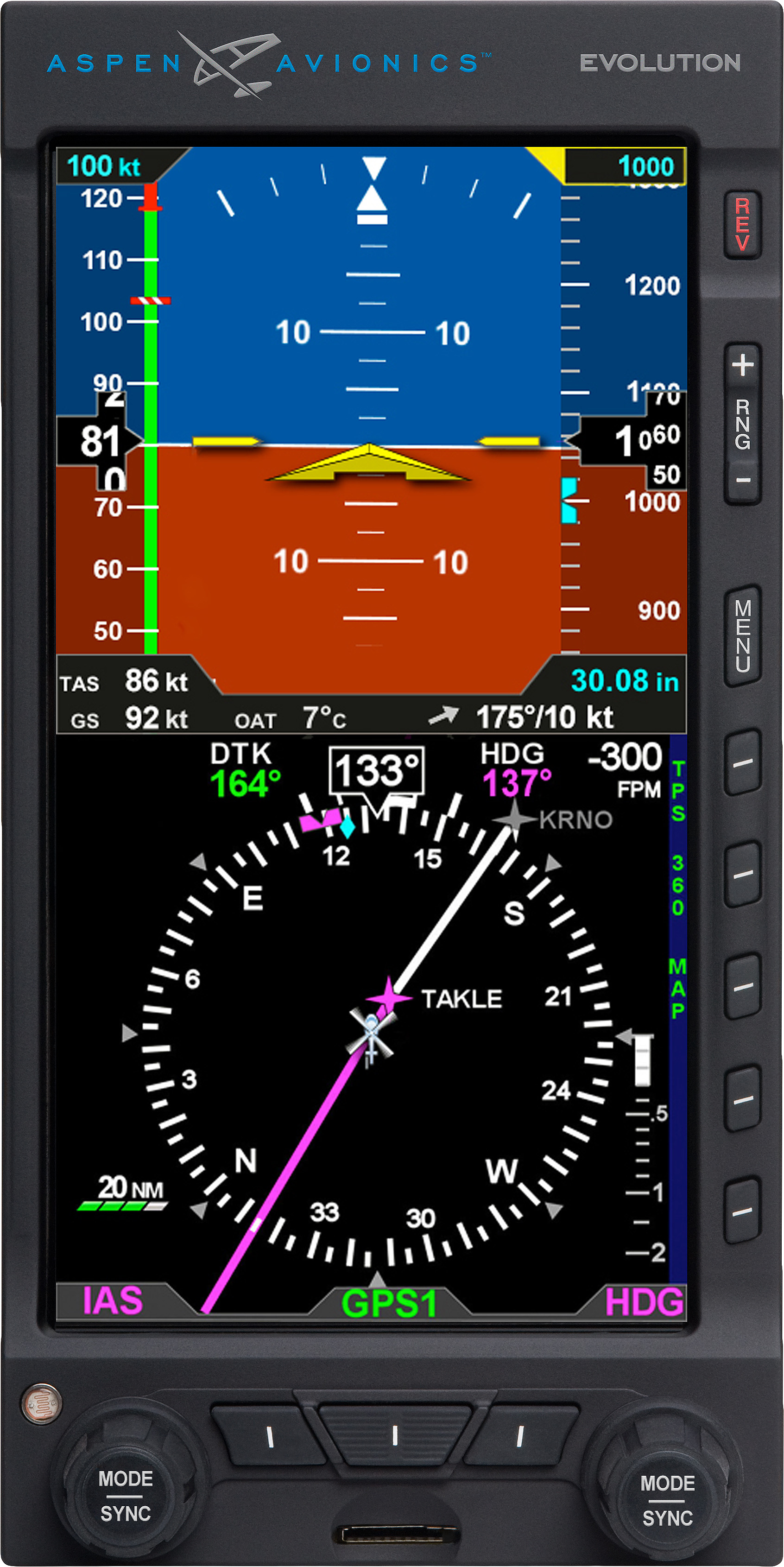

The Pilot H is geared towards helicopter operators that fly VFR-based missions and features easy to read airspeed and altitude tapes, an integral altitude alerter, a slaved directional gyro with heading bug, base map view with flight plan overlay, display of real-time winds aloft, outside air temperature, true airspeed, and ground speed, built-in backup battery and emergency GPS functionality.

The Pilot H delivers enhanced safety and reduced pilot workload, and the innovative Evolution form factor installs easily in existing helicopter instrument panels and eliminates bulky remote boxes and heavy wiring.

Engineered for Easy Installation

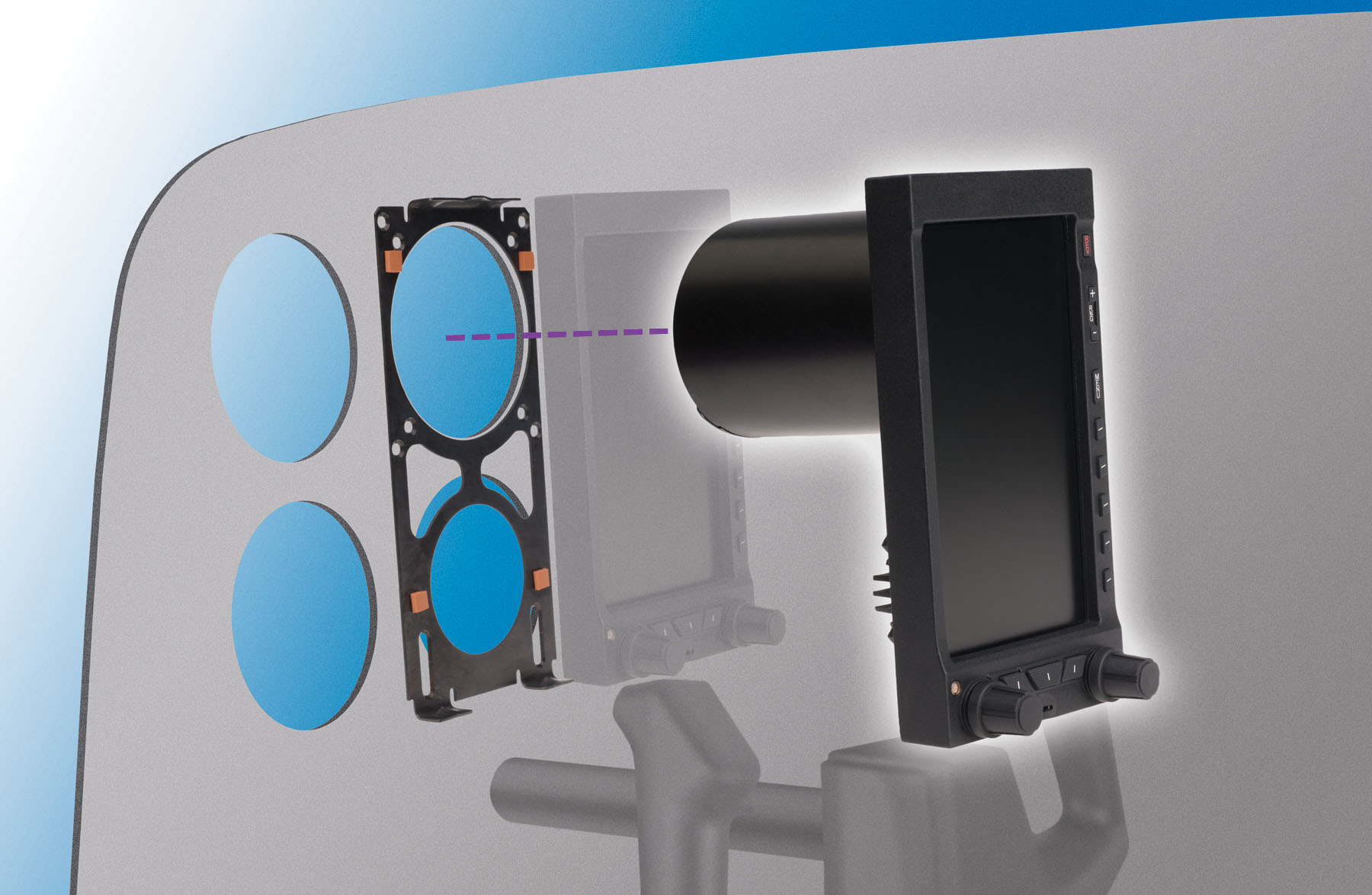

The Evolution flight displays are an innovative, modular system that slide into the existing 3-inch instrument holes in any instrument panel. A universal bracket provides easy surface mounting. The system can optionally be flush mounted. This unique system dramatically reduces installation time and cost.

The modular Evolution platform allows for easy expansion. The integrated displays mount side-by-side in one, two, and three display configurations for supreme flexibility and upgradability.
